NLX Series Tractor | Tractor Manufacturer

Utility Tractor, 85-95HP

Features

This tractor is designed for versatile performance in orchards and vineyards, compatible with various implements like sprayers, trenchers, and plows.
The YTO four-cylinder diesel engine with dual-stage balancing provides strong power with low vibration and fuel efficiency.
A built-in dry air filter and under-mounted muffler protect against impacts during tight orchard work.
Multiple gear options, including 12F+4R, 12F+12R, or 24F+8R, provide a wide range of speeds to meet different operational needs.
An independent dual-action clutch allows separate control of driving and PTO, enhancing work efficiency.
The hydrostatic steering ensures easy, flexible handling, with an adjustable steering wheel for driver comfort.
Hydraulic disc brakes deliver reliable stopping power with minimal effort.

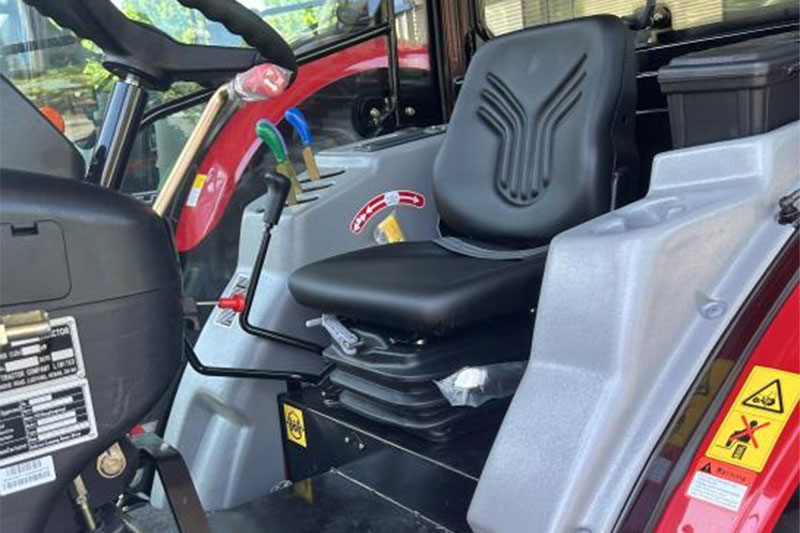

The GRAMMER seat offers four-stage adjustments for a comfortable ride.

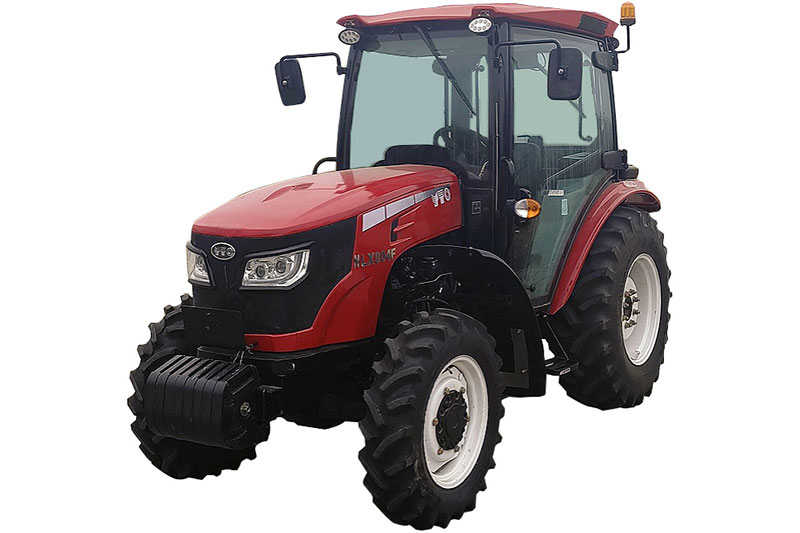

The panoramic cab provides a clear, wide field of view with durable, wear-resistant interior options and an optional air conditioning system for driver comfort.

Specifications

Model	NLX854F	NLX904F	NLX954F
Engine type	4-cylinder, natural aspiration diesel engine
Rated engine power kW(hp)	62.5(85)	66.1(90)	70(95)
Rated engine speed (rpm)	2300
Clutch	Independent, double action
Gears	12F+4R; 12F+12R or 24F+8R (optional)
Speed range (km/h)	1.8-29.8
Brake	Wet, disc
Rear side PTO (rpm)	540/1000
Lifting force (link joint) (kg)	≥2300

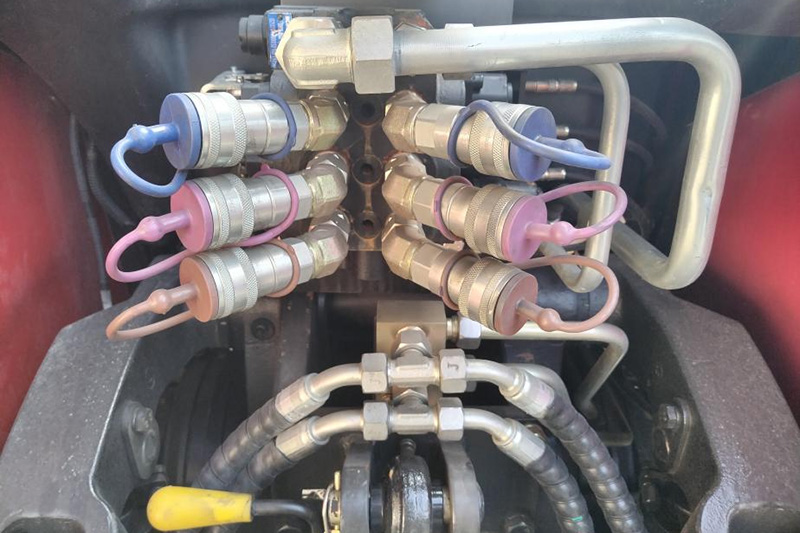

Hydraulic output (set)	3
Overall dimensions (LWH) (mm)	416515802350 (Cab) / 416515802530 ( ROPS)
Wheel base (mm)	2184
Ground clearance(mm)	300
Wheel track(mm) (F/R)	1240/1160
Min. turning radius (m)	3.6±0.3
Tyre (F/R)	9.5-20/14.9-24
Total mass (kg)	3320 (Cab) / 3120 (ROPS)
