Utility Tractor, 80-115HP

YTO-NLX854 / NLX954 / NLX1024 / NLX1054 / NLY1154E / EX800 / ELX954H

Utility Tractor, 80-115HP

Utility Tractor, 80-115HP

YTO-NLX854 / NLX954 / NLX1024 / NLX1054 / NLY1154E / EX800 / ELX954H
Features
  • The series of tractors perform well in farming chores and transportation with its large traction force;
  • The 4-cylinder diesel engine produces high horsepower with less fuel;
  • 12F/4R gears allow for a wide speed range to handle multi-tasks;
  • Double action clutches separately control driven wheels and PTO, which improves productivity;
  • The hydrostatic steering unit ensures precise control and requires less operator effort;
  • The hydraulic disc brake offers the advantage of better stopping power and consistent braking performance;
  • The enclosed cab provides operators a wide view and a comfortable experience with optional cooling and heating systems;
  • Gear shifting synchronizers, a lifter with draft and position adjustment devices and air brake systems are optional.
  • Enclosed cab
    Enclosed cab

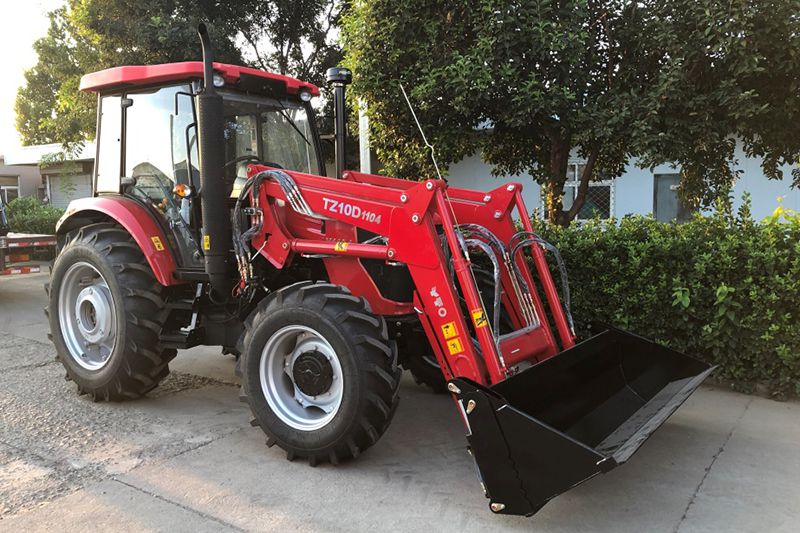

  • Front loader
    Front loader

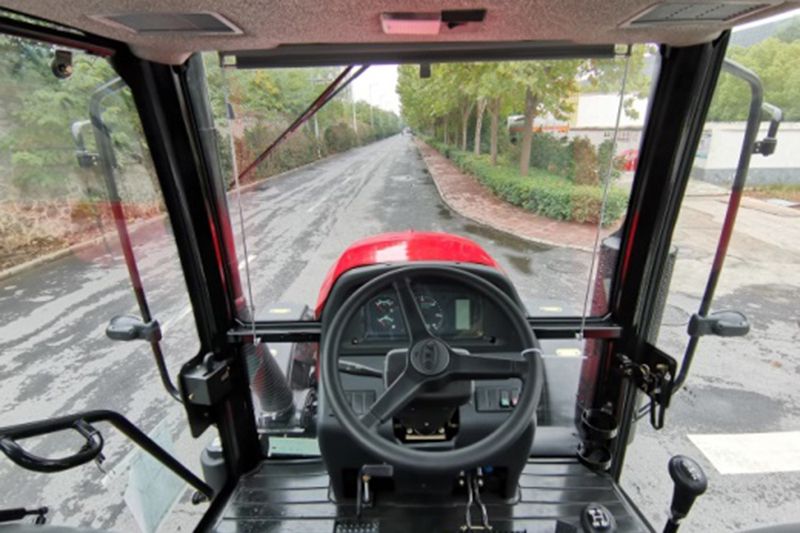

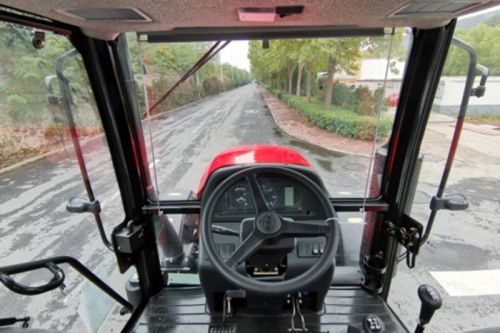

  • Wide view
    Wide view

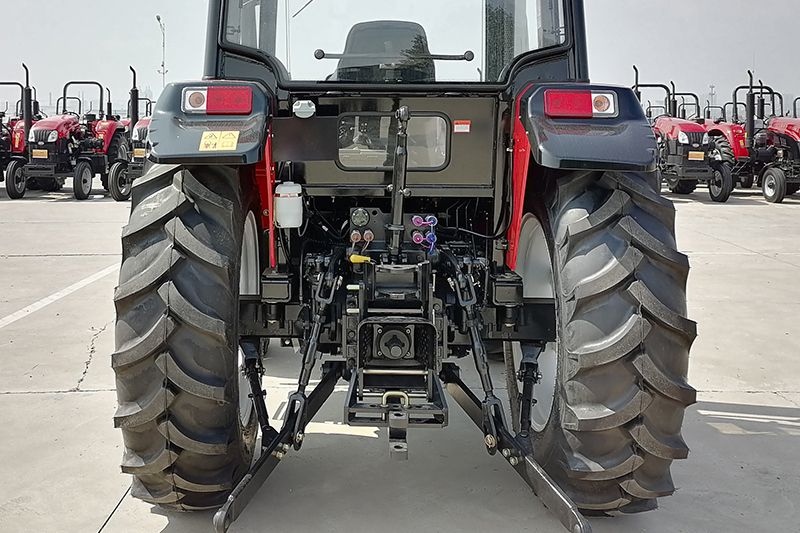

  • Rear suspension
    Rear suspension
Specifications
Model
NLX854
NLX954
NLX1024
NLX1054
NLY1154E
EX800 (sunshade)
EX954H
Driving type 4*4 4*2 4*4
Engine type Naturally aspirated 4-cylinder diesel engine 4-cylinder turbocharged diesel engine Naturally aspirated 4-cylinder diesel engine
Rated engine HP (kW) kW (HP) 62.5 (85) 70 (95) 76 (102) 77.2 (105) 84.5 (115) 59 (80) 70 (95)
Engine speed (rpm) 2300
Clutch Independent, double action
Gears 12F/4R (Options: 12F/12R or 24F/8R) 12F/12R 12F/4R (Options: 12F/12R)
Speed range (km/h) 1.64-26.97 1.65-27.17 2.17-36.7 2.28-36.9 1.9-31.7 1.29-21.20
Brake Wet, disc
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (kN) ≥23
Hydraulic multiplier (set) 1 or 2 or 3
Dimensions (L*W*H) (mm) 4350*2300*2765 3950*2170*2530 4080*2165*3025
Wheelbase (mm) 2314 2342 2542
Ground clearance (mm) 430 440 360 900
Wheel track (F/R) (mm) 1630-1960/ 1540-2120 1562-2000/1540-2120 1400-1900/1520-2120 1800/1800
Min. turning radius (m) 5.6±0.3 4.1±0.3 7±0.3
Tyre (F/R) 11.2-28/ 16.9-34 13.6-24/16.9-34 7.50-16/16.9-30 12.4-54/12.4-54
Min. operating mass (kg) 3900 4100 3150 4830
