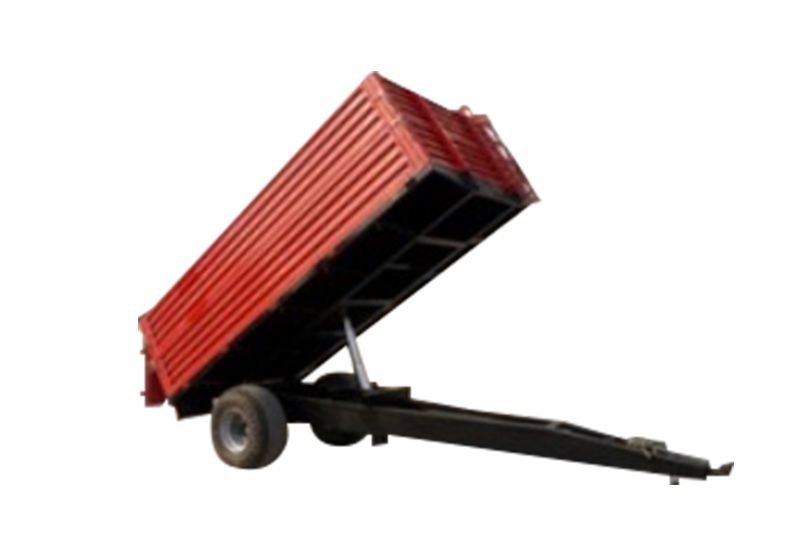

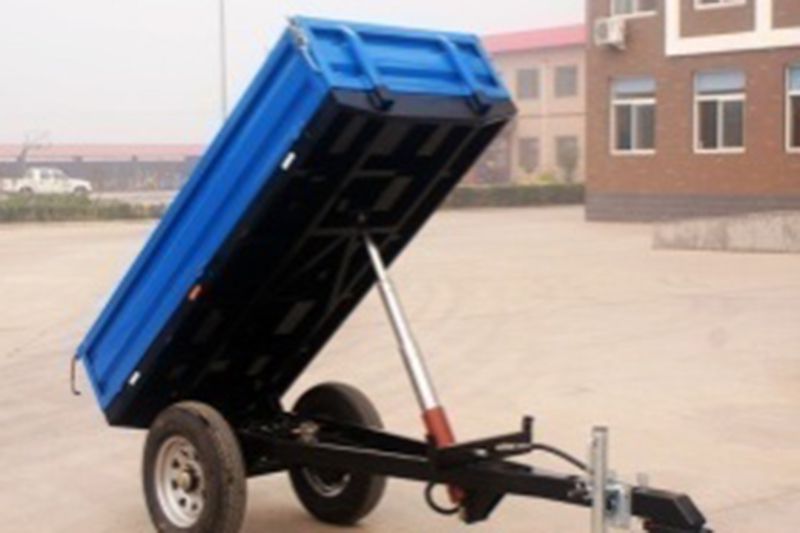

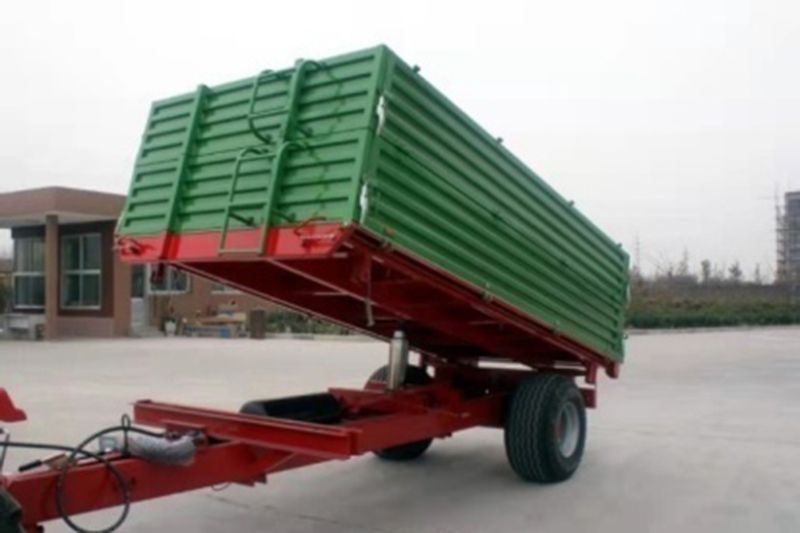

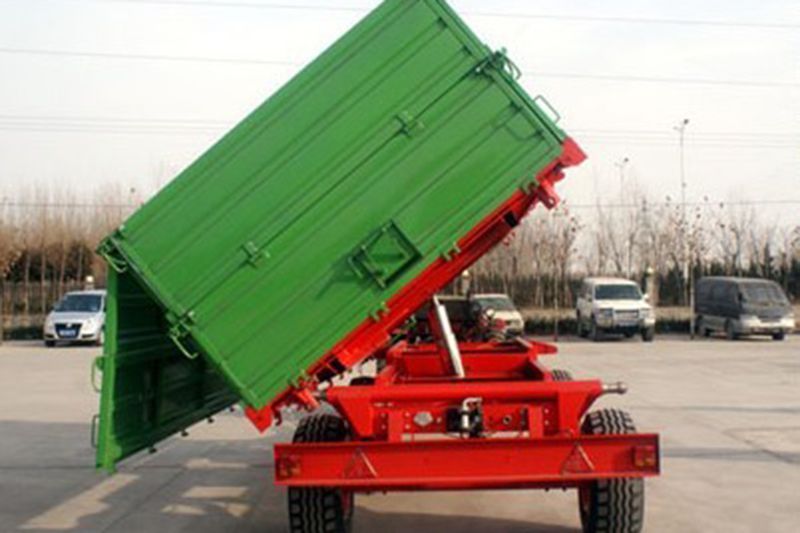

Dump Trailer / Agricultural Trailer

7CX-1/7CX-2/7CX-3.5/7CX-5/7CX-8
Features

The dump trailer with high load capacity is easy to use and maintain. It is particularly designed for heavy-duty transportation work.

Specifications
Model
7CX-1
7CX-2
7CX-3.5
7CX-5
7CX-8
Load weight (kg) 1000 2000 3500 5000 8000
Load capacity (m³) 0.66 1.73 2.7 8.6 8.8
Dimensions (L*W*H) (mm) 2900*1050*970 3700*1660*1400 4800*1790*1810 5020*1990*1855 5830*2200*2260
Cargo dimensions (L*W*H) (mm) 2000*1000*330 2500*1500*460 3400*1700*460 3610*1810*（460+460） 4010*2060*（550+550）
Brake type Air brake Air brake + Parking brake
Linkage Fixed
Dumping form Rear dump 3-side dump 2- or 3-side dump
Number of telescopic cylinders 3 4
Dumping angle (˚) 45
