Planter

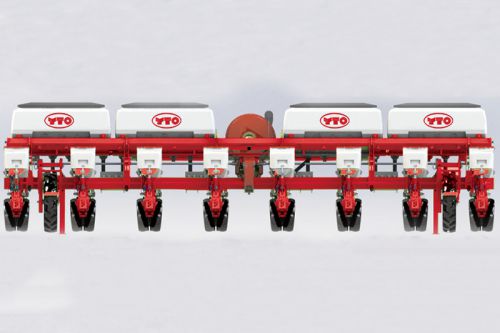

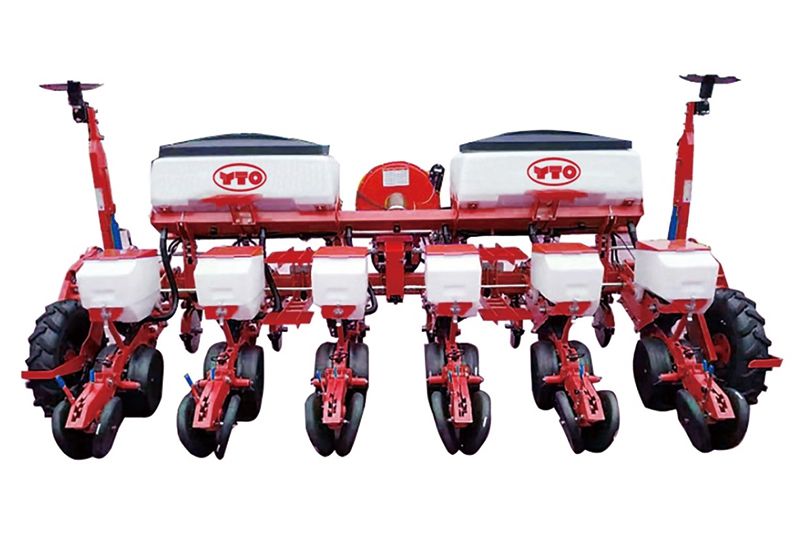

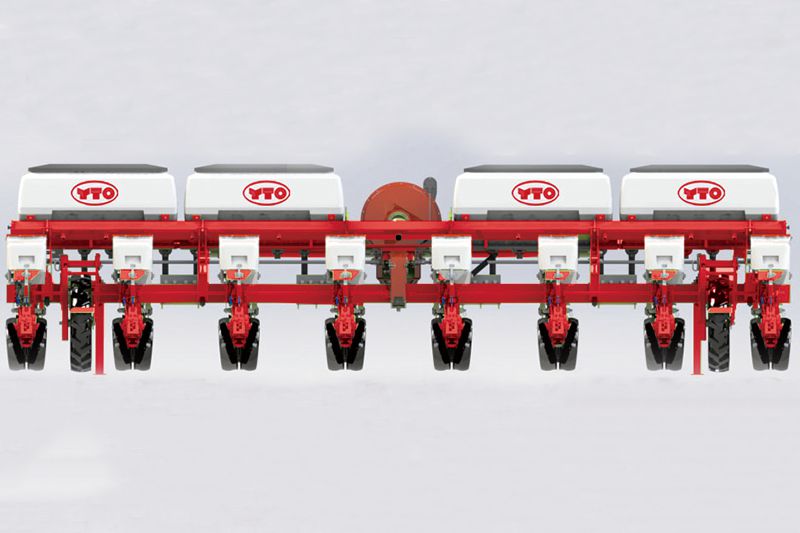

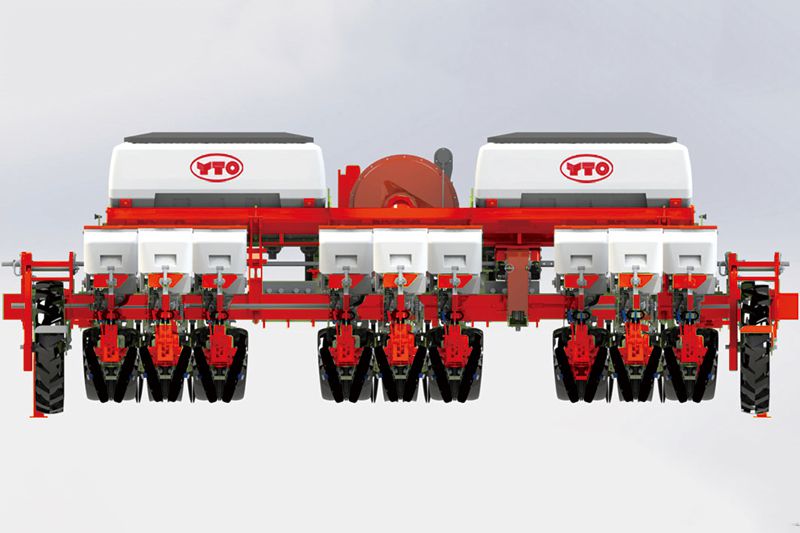

Pneumatic Precision Planter

2610-2800-2900 2B Series

  • 2610 Pneumatic Precision Planter
    2610 Pneumatic Precision Planter
  • 2800 Pneumatic Precision Planter
    2800 Pneumatic Precision Planter
  • 2900 Pneumatic Precision Planter
    2900 Pneumatic Precision Planter

Features
The series of pneumatic precision planter can be used for sowing different crops by quickly changing the sowing discs. It is suitable for flat farming and ridge seeding after soil preparation. During the operation, it can do the job of large-scale sowing and fertilization at one time, such as, side deep fertilization, sowing and trenching, single seed planting, soil compression and restoration.

Specifications

Model
2610
2800
2900
Structure type Pneumatic; suspension
Required power (HP) 90-120 150-210
Dimensions (L*H*W) (mm) 2040*4700*1900 2040*5900*1500 2040*4400*1500
Working speed (m/s) 1.6-2.2
Efficiency (hm２/h) 1.8-3.3 2.3-5.1 2.3-3.1
Working width (cm) 390 (252-420) 520 (336-560) 390
Row space (cm) 65 (42-70) 65 (42-80) 130
Number of rows 6 8 9
Weight (kg) 1760 2380 2190

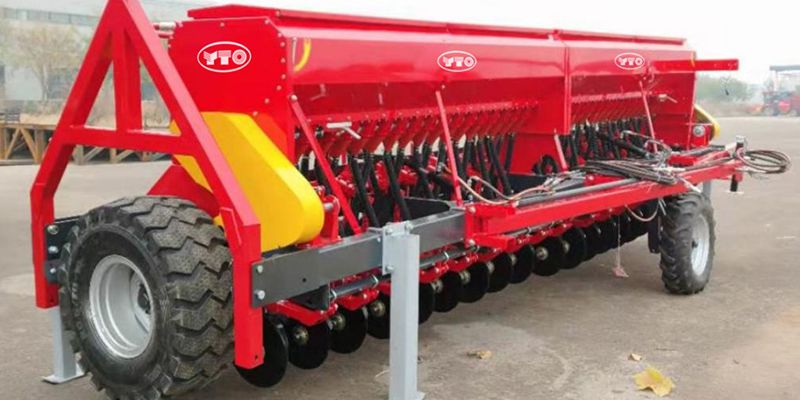

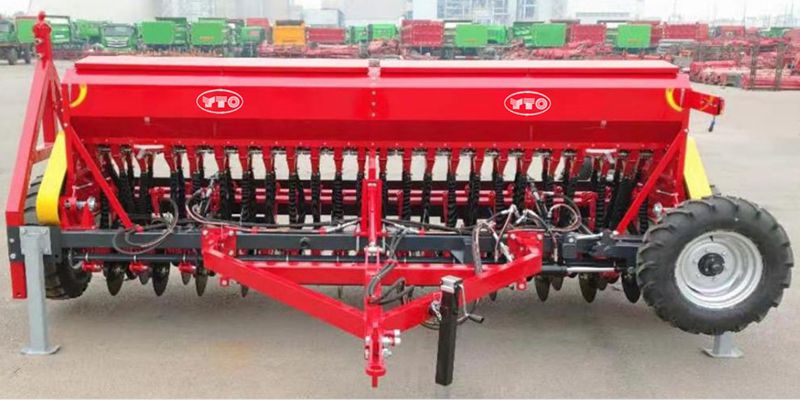

Seed Drill

2BFY-24/2BFY-36

  • Seed Drill
  • Seed Drill

Features
The seed drill can complete fertilization, sowing, mulching and soil compression at the same time. It is mainly used for wheat and cereal strip sowing as well as sorghum and soybean sowing.

Specifications

Model
2BFY-24
2BFY-36
Dimensions (mm) 3660*7360*1660 4120*6900*2500
Weight (kg) 1850 2800
Working width (cm) 360 540
Working depth (mm) 30～80
Total number of rows 24 36
Required power (HP) 50～120 75～180
Seed box volume 615 920
Fertilizer tank volume (L) 570 850
Drive type Chain
