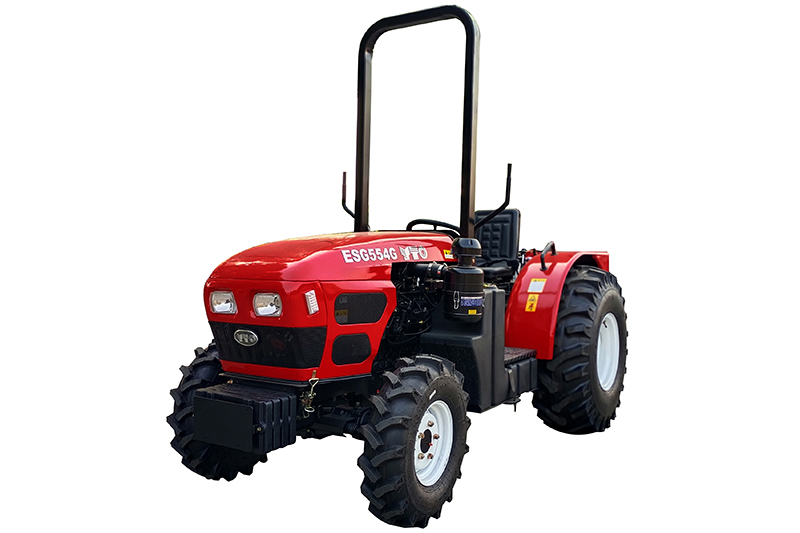

Narrow Tractor / Orchard Tractor, 50-65HP

YTO-ESG504G/ESG554G/ESG654G

Narrow Tractor / Orchard Tractor, 50-65HP

Narrow Tractor / Orchard Tractor, 50-65HP

YTO-ESG504G/ESG554G/ESG654G
Features
  • The series of narrow tractors are designed for easy access under low-hanging tree branches to do orchard chores or farming work.
  • 16F/8R gears offer a wide speed range for a variety of uses;
  • The side gear shift lever enables easy and convenient operation;
  • The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power;
  • The hydrostatic steering unit ensures precise control and requires less operator effort;

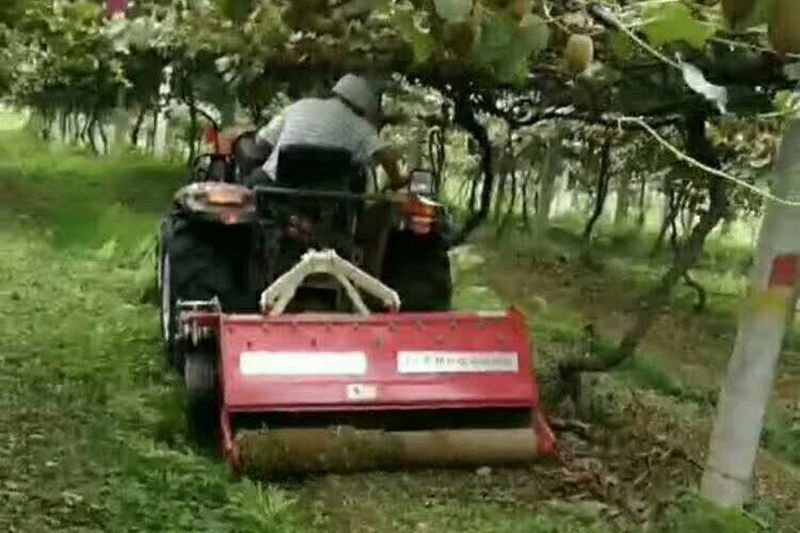

  • Rotary tillage
    Rotary tillage

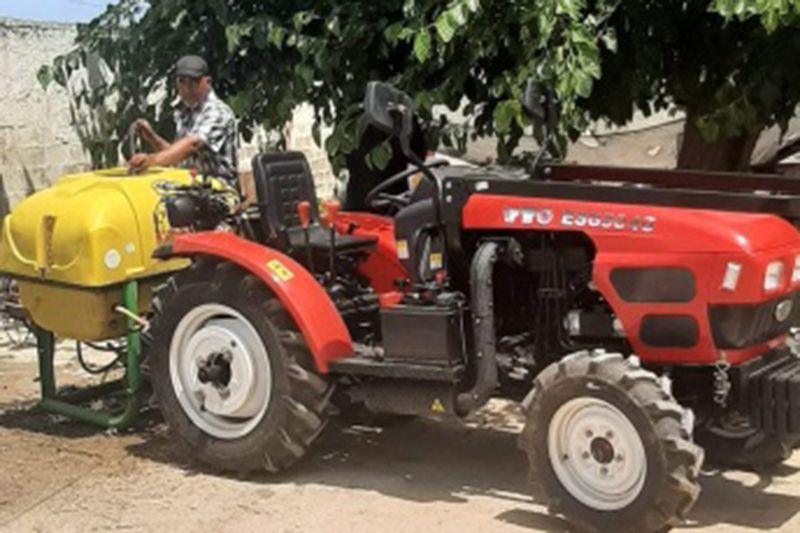

  • Drug spray
    Drug spray

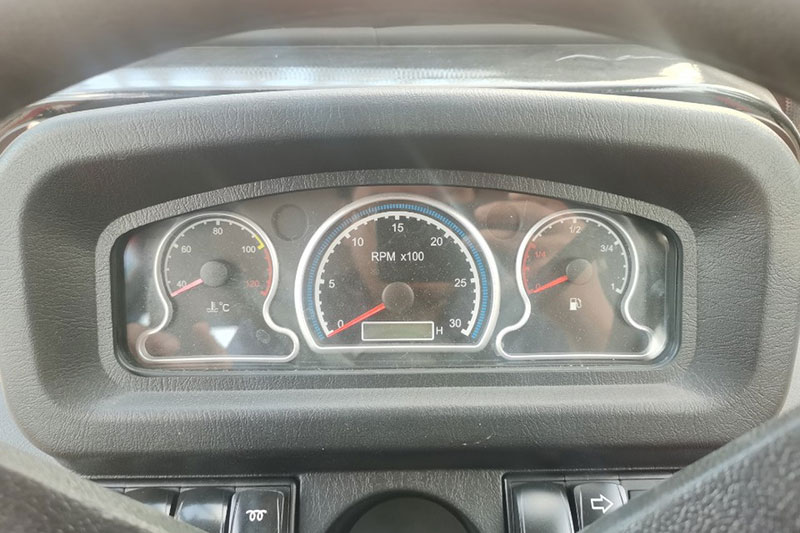

  • Multifunctional dashboard
    Multifunctional dashboard
Specifications
  • Specifications

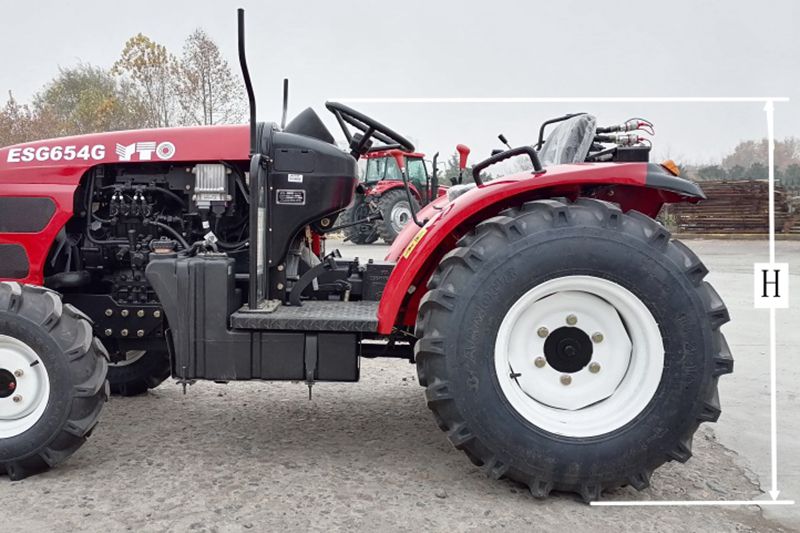

    Height=1260mm
  • Specifications

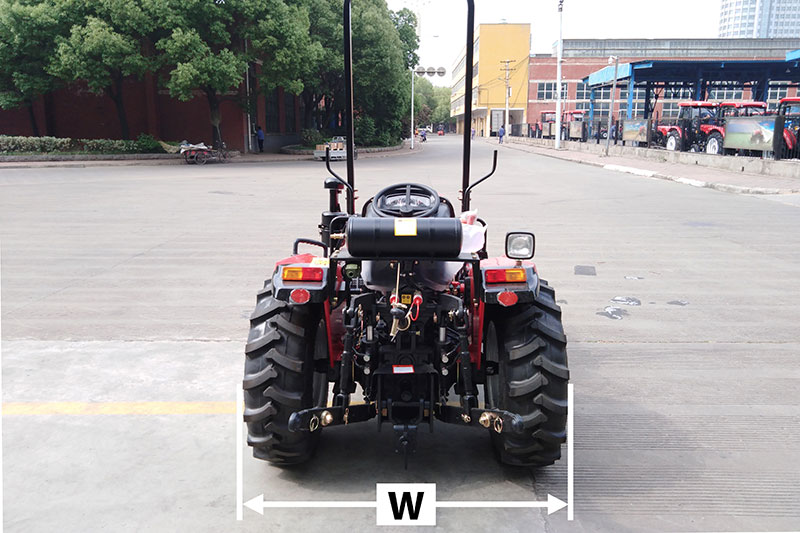

    Width=1380mm
Model (without ROPS)
ESG504G
ESG554G
ESG654G
Engine type 4 cylinder, naturally aspirated diesel engine 4 cylinder, turbocharged diesel engine
Rated engine HP (kW) 36.8(50) 40.5(55) 47.7(65)
Engine speed (rpm) 2200 2300
Clutch Double action
Gears 16F/8R
Speed range (km/h) 0.44-33.48
Brake Wet, disc
Rear PTO (rpm) 540/1000
Lifting capacity (pivot point) (kg) ≥1500
Lift capacity (pivot point) (kN) ≥12.7
Hydraulic multiplier (set) 1 or 2
Dimensions (L*W*H) (mm) 3080*1380*1260
Wheelbase (mm) 1740
Ground clearance (mm) 270
Wheel track (F/R) (mm) 4.8±0.2
Min. turning radius (m) 1000/1000-1200
Tyre (F/R) 6.00-12/13.2-16
Min. operating mass (kg) 1700 1730
