Narrow Tractor / Orchard Tractor, 25-60HP

YTO-SK254/ESK354/ESK454/EME554/EME604

Narrow Tractor / Orchard Tractor, 25-60HP

Narrow Tractor / Orchard Tractor, 25-60HP

YTO-SK254/ESK354/ESK454/EME554/EME604
Features

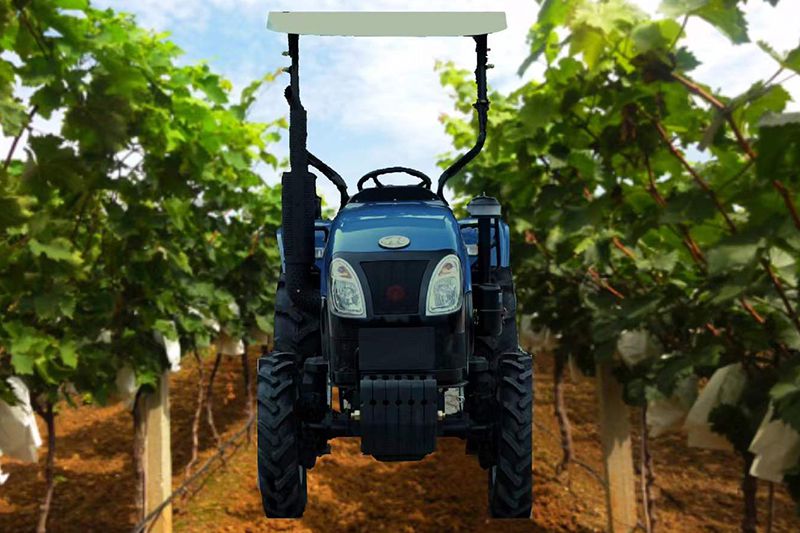

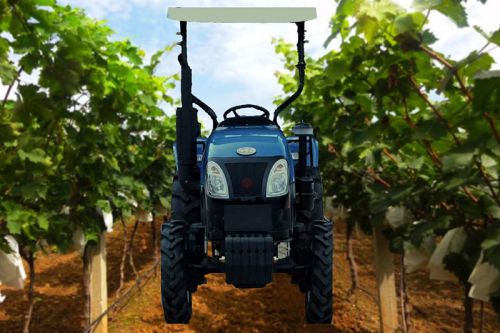

  • The series of narrow tractors that are less than 1.3m in width are particularly suitable for use in orchards;
  • The naturally aspirated diesel engine produces high horsepower with low fuel consumption;
  • 8F/2R, 8F/4R and 8F/8R gears are provided to suit your needs;
  • The step-less adjustment of rear wheel track enable smooth change to meet various needs;
  • The hydrostatic steering unit ensures precise control and requires less operator effort;
  • We provide optional air brake systems and a high-pressure lifter.

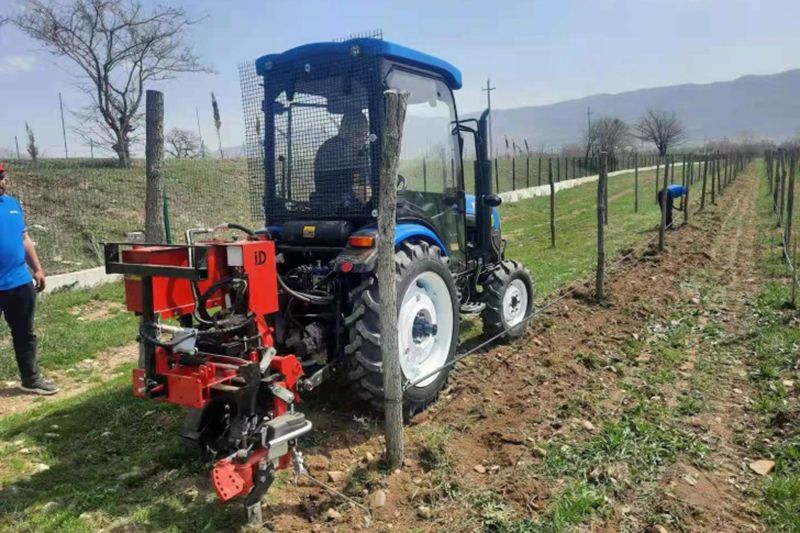

  • Enclosed cab
    Enclosed cab

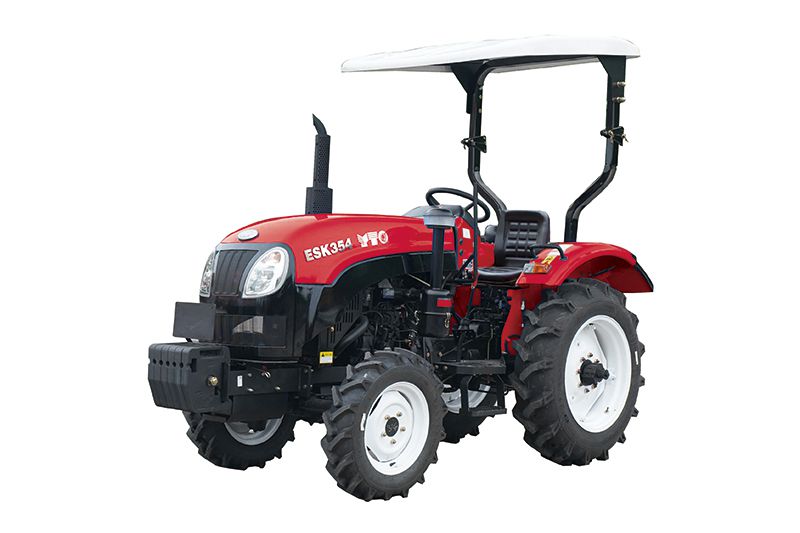

  • Open station
    Open station

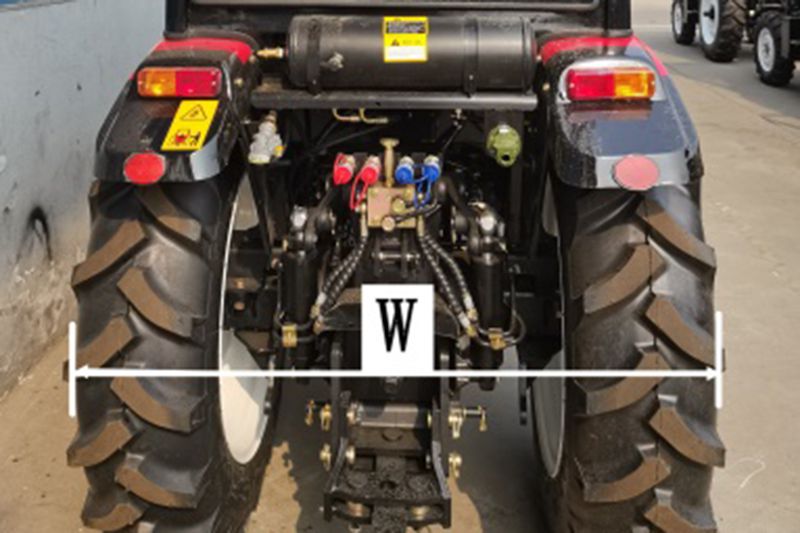

  • Max. width=1300mm
    Max. width=1300mm

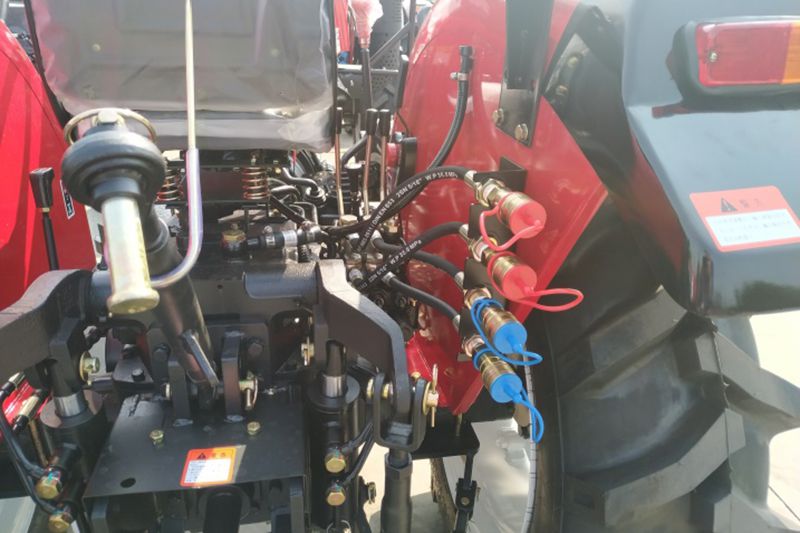

  • Hydraulic multiplier
    Hydraulic multiplier
Specifications
Model (without ROPS)
SK254 (Narrow)
ESK354 (Narrow)
ESK454 (Narrow)
EME554 (Narrow)
EME604 (Narrow)
Engine type 3 cylinder, naturally aspirated diesel engine 4 cylinder, naturally aspirated diesel engine
Rated engine HP (kW) 18.5 (25) 25.8 (35) 33.1 (45) 40.5 (55) 44.1 (60)
Engine speed (rpm) 2300 2400 2400 2200
Clutch Single action Double action
Gears 8F/2R 8F/4R (option: 8F/8R) 8F/8R
Speed range (km/h) 1.74～25.7 1.91～28.23 2.03～30.10 2.25～29.37
Brake Dry, horseshoe Wet, disc
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (kN) ≥7 ≥9.75 ≥10.9
Hydraulic multiplier (set) 1 or 2
Dimensions (L*W*H) (mm) 3480*1150*2380 3600*1150*2380 3675*1150*2600
Wheelbase (mm) 1650 1795 1830 1840
Ground clearance (mm) 275
Min. turning radius (m) 5.5±0.3
Wheel track (F/R) (mm) 900/900～1100 or 1000/1000～1200
Tyre (F/R) 6.00-16/9.5-24 6.00-16 / 9.5-24 (option: 7.50-16/11.2-28)
Min. operating mass (kg) 1470 1520 1570 1720 1750
