Front Loader and Rear Excavator

Front Loader

Loader Model	Unit	TZ02D	TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D
Tractor Model	HP	15-25	20-40	30-55	40-60	50-75	70-100	90-130

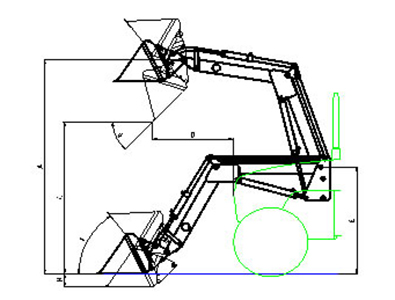

Max. Lift Height at the Connection Pivot Point (A)	mm	2350	2552	2740	3010	3400	3710	3970
Dump Height (C)	mm	1730	1840	2100	2370	2480	2720	3000
Bucket Width	mm	1250	1250	1400	1500	1600	1700	2000
Bucket Capacity	m3	0.18	0.18	0.2	0.22	0.43	0.46	0.6
Rated Lifting Capacity	kg	200	200	300	400	600	800	1000

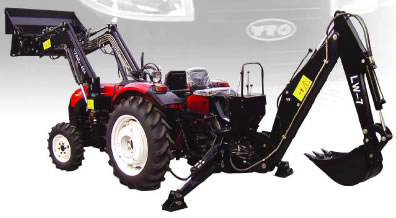

Rear Excavator

Inquiry

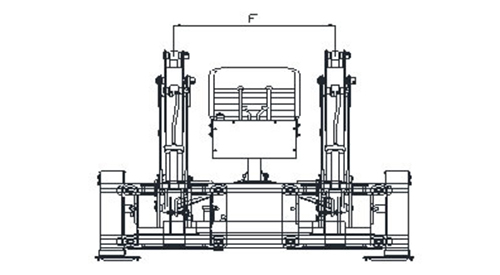

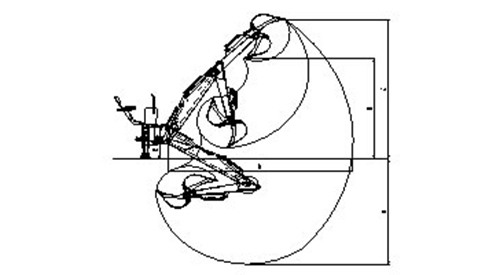

Model	Matched Power (HP)	Max. Excavation Depth (A) (mm)	Max. Dump Height (B) (mm)	Max. Excavating Height (C) (mm)	Working Radius (D) (mm)	Ground Clearance (E) (mm)	Lateral Displacement (F) (mm)	Bucket Width (mm)	Bucket Capacity (m3)	Net Weight (kg)
LW5	15-25	1650	1530	2600	2300	450	0	340	0.025	360
LW6	20-35	2000	1860	2970	2700	450	0	340	0.03	550
LW6E							760			600
LW7	30-50	2400	2050	3210	3140	450	0	380	0.04	560
LW7E							760			620
LW8	45-90	2800	2380	3460	3600	500	0	420	0.05	630
LW8E							1000			700
LW10	70-120	3200	2650	3770	3920	500	0	500	0.07	800
LW10E							1200			1000
LW12	100-140	3655	3627	5040	4510	700	0	575	0.13	1500
