Tractor Implement

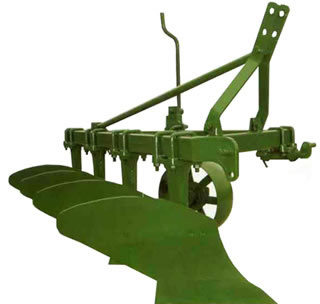

Plow

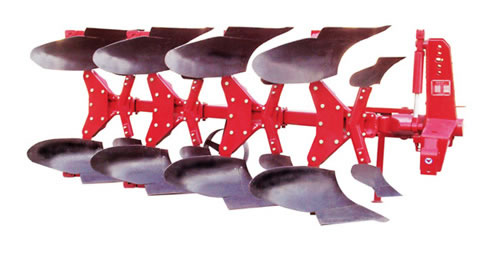

Reversible plow
| Product Name | Model | Plowing Width (m) | Matched Power (Hp) |
| 1LF-30/35 series reversible plow | 1LF-330/335/430/435/535 | 0.9-1.75 | 50-130 |
Furrow plow
| Product Name | Model | Plowing Width (m) | Matched Power (Hp) |
| 1LF-30/35 series reversible plow | 1LF-330/335/430/435/535 | 0.9-1.75 | 50-130 |

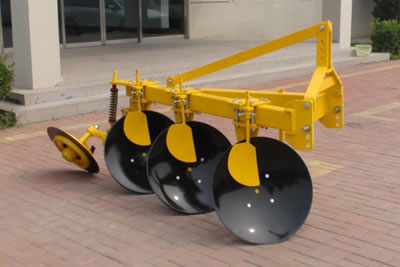

Disc plow
| Model | Unit | 1LYQ(T)-220 | 1LYQ(T)-315 | 1LYQ(T)-320 | 1LY(T)-325 | 1LY(T)-330 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
| Plowing Width | mm | 0.4 | 0.45 | 0.6 | 0.75 | 0.90 | 1.0 | 1.25 | 1.5 |
| Plowing Depth | mm | 200 | 180 | 200 | 250 | 300 | 250 | 250 | 250 |
| Disc Diameter | mm | 510 | 450 | 510 | 660 | 710 | 660 | 660 | 660 |
| Number of disc | pcs. | 2 | 3 | 3 | 3 | 3 | 4 | 5 | 6 |
| Weight | kg | 150 | 180 | 190 | 420 | 470 | 500 | 560 | 650 |
| Matched power | Hp | ≥18 | ≥25 | 25-40 | ≥50 | 70-90 | 90-120 | 120-140 | 120-160 |
| Linkage | - | Three-point suspension | |||||||

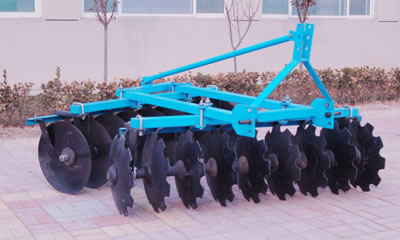

Disc harrow
| Product Name | Model | Width (m) | Matched Power (Hp) |
| 1BQX series three-point suspension light-duty harrow | 1BQX-1.1/1.3/1.5/1.7/1.9/2.3 | 1.1-2.3 | 12-50 |
| 1BQD series light-duty opposed disc harrow | 1BQD-1.6/2.0/2.4 | 1.6-2.4 | 30-60 |
| 1BZD series hydraulic heavy-duty opposed disc harrow | 1BZD-2.8/3.3/3.8 | 2.8-3.8 | 80-160 |
| 1BJX series three-point suspension medium-duty harrow | 1BJX-1.8/2.0/2.2/2.4/2.5 | 1.8-2.5 | 45-80 |
| Heavy-duty harrow (South America style) | TSM-12/14/16/18/20 | 1.2-2.0 | 75-140 |
| Double-folding wing hydraulic medium-duty harrow, 1BJ type | 1BJ-4.4/5.3 | 4.4-5.3 | 80-160 |
| TAY series heavy-duty harrow | TAY28/32/36-28 | 2.8-3.6 | 180-260 |

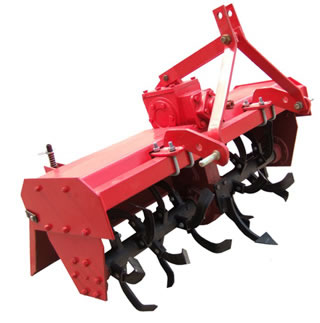

Rotary tiller
| Product Name | Model | Width (m) | Matched Power (Hp) |
| 1G series rotary tiller with lateral drive | 1G-90/100/125/140/150 | 0.9-1.5 | 12-30 |
| 1GN series rotary tiller with intermediate drive | 1GN-100/120/130/150/160 | 1.0-1.6 | 15-45 |
| 1GNQ series rotary tiller | 1GQN-165/170/180/200/230/250 | 1.65-2.5 | 40-100 |
| 1GQQN-J series frame-type rotary tiller with high box body | 1GQQN-180/200/230/250/280/300/350 J | 1.8-3.5 | 50-160 |
| European style 1GL and 1GQL series rotary tiller | 1GL-130/150/160/180 | 1.3-1.8 | 20-55 |
| 1GQN-JDSL series frame-type stubble ploughing, rotary tillage and subsoiling ridger | 1GQN-JDSL125/140/165/180/210/240/250 | 1.25-2.5 | 25-80 |

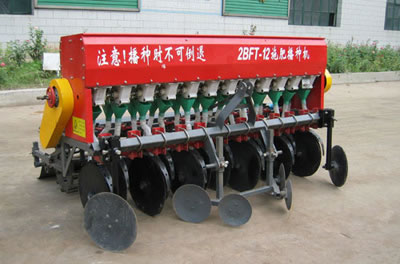

Seeder
| Product Name | Model | Width (m)/Row Number | Matched Power (Hp) |
| 2BFSF-24 seeder (Separate seeding and fertilization) | 2BFSF-24 | 3.6/44 | 55-70 |
| 2BFT-14 seed and fertilizer drill | 2BFT-14 | 1.8/12 | 20-30 |
| 2BFX-24 seeder | 2BFX-24 | 3.6/24 | 60-80 |
| 2BFY-24/28/36 combined seed and fertilizer drill | 2BFY-24/28/36 | 3.6-5.4/24-36 | 55-120 |
| 2BX-18 seeder | 2BX-18/24 | 2.7-3.6/18-24 | 55-100 |
| 2BFY-6A corn combined seed and fertilizer drill | 2BFY-6A | 5.0/8 | 50-100 |
| 2BQ-3/5/6 air-suction precise seeder | 2BQ-3/5/6 | 1.8-3.6/3-6 | 30-70 |

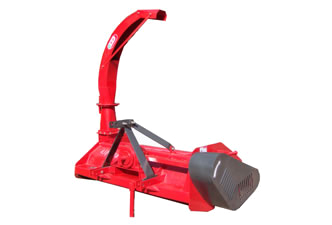

Shredded straw collecting machine
| Product model | 4JQ-1.8 |
| Working width (m) | 1.8 |
| Shredding length (mm) | 30-100 |
| Stubble height (mm) | 100-150 |
| Matched power (Hp) | 60-80 |

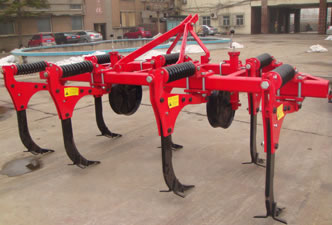

Subsoiler
| Product model | 1S-300 |
| Working width (m) | 3.0 |
| Number of shovels | 3-7 |
| Row spacing (mm) | 400-600 |
| Subsoiling depth (mm) | 250-400 |
| Matched power (Hp) | ≥90 |

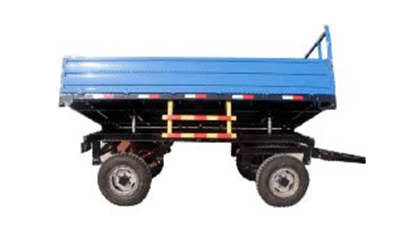

Trailer
| Product Name | Model | Load (t) |
| 7C series trailer | 7C-1.5/2/2.5/3.5/4 | 1.5/2/2.5/3.5/4 |
| 7CX series self-dump trailer | 7CX-4-20 | 4-20 |
| Grapple trailer | ZMJ-8-600 | 3.6/24 |

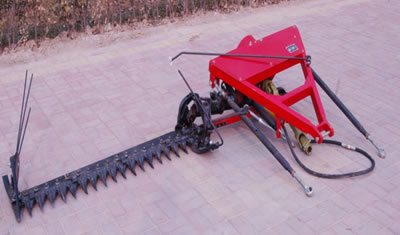

9G series mower
| Model | Unit | 9G-1.4 | 9G-1.6 | 9G-1.8 | 9G-2.1 |
| Cutting width | m | 1.4 | 1.6 | 1.8 | 2.1 |
| Cutting height | cm | 5-6 | 5-6 | 5-6 | 5-6 |
| Total weight | kg | 140 | 160 | 180 | 200 |
| Matched power | Hp | 15 | 18 | 20 | 25 |
| Linkage | - | Standard three-point suspension | |||
| Model | Unit | 9GX-1.5A | 9GX-1.8A | 9GX-2.1A |
| Cutting width | m | 1.5 | 1.8 | 2.1 |
| Cutting height | cm | 20-50 | 20-50 | 20-50 |
| Total weight | kg | 380 | 490 | 550 |
| Matched power | Hp | 40-60 | 60-80 | 70-90 |
| Linkage | - | Three-point suspension | ||

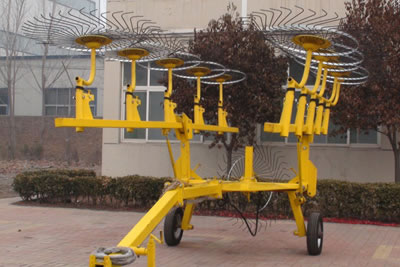

Hay rake
| Model | Unit | TSWR-11 | TSWR-13 |
| Working width | mm | 6500 | 7000 |
| Swath width | mm | 1200-1500 | 1200-1500 |
| Transport dimension (L×W×H) | mm | 7800×3520×2600 | 8500×3520×2600 |
| Spring tooth diameter | mm | 1450 | 1450 |
| Towing height | mm | 470 (adjustable) | 580 (adjustable) |
| Matched power | Hp | 80-100 | 80-100 |
Potato planter and harvester

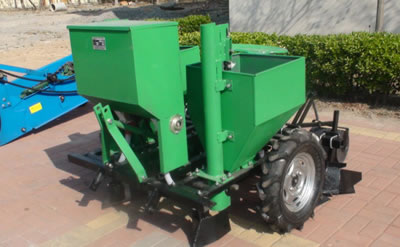

Potato planter
| Model | Unit | 2CM-1 | 2CM-2 |
| Overall weight | kg | 90 | 200 |
| Row spacing | cm | - | 50-80 |
| Planting distance | cm | 25-33 | 25-33 |
| Matched power | Hp | 18-25 | 25-35 |
| Linkage | Three-point suspension | ||

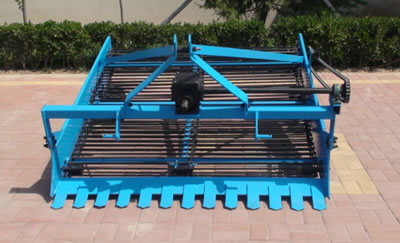

Potato harvester
| Model | Unit | 4UD-1 | 4UD-2 | |
| Overall weight | kg | 125 | 200 | 420 |
| Working width | cm | 60-80 | 60-80 | 1.3-1.5 |
| Matched power | Hp | 25-35 | 25-35 | 50 |
| Linkage | - | - | Three-point suspension | |
