YTO40B Mini Crawler Excavator

YTO40B Mini Crawler Excavator
  • YTO40B Mini Crawler Excavator
  • YTO40B Mini Crawler Excavator
Inquiry

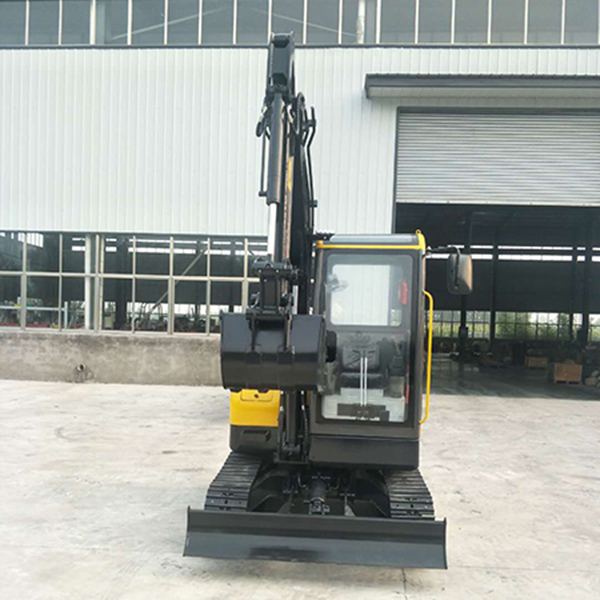

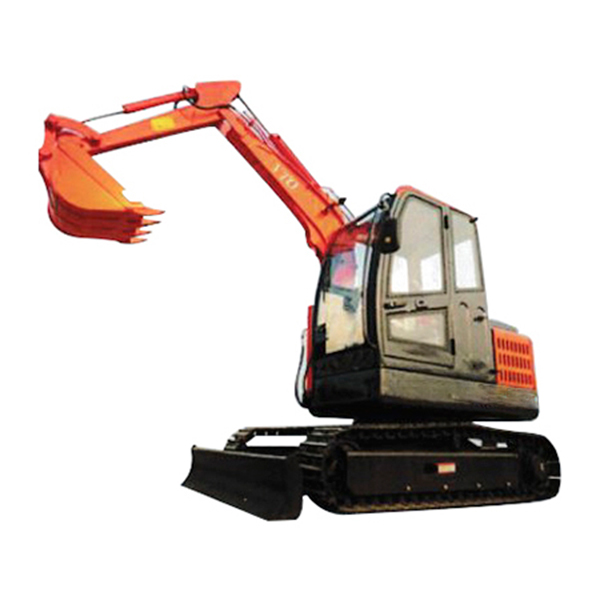

YTO40B Mini Crawler Excavator

Features

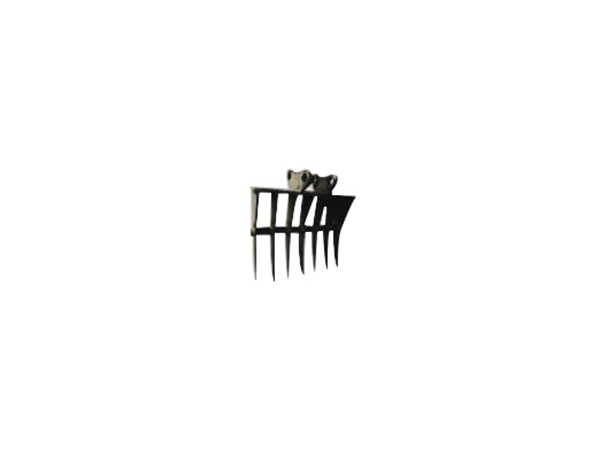

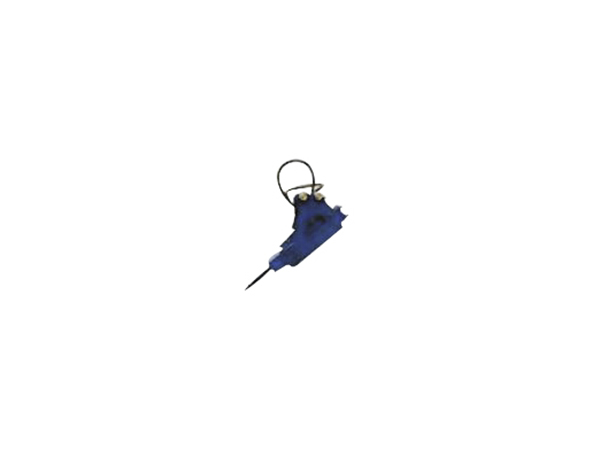

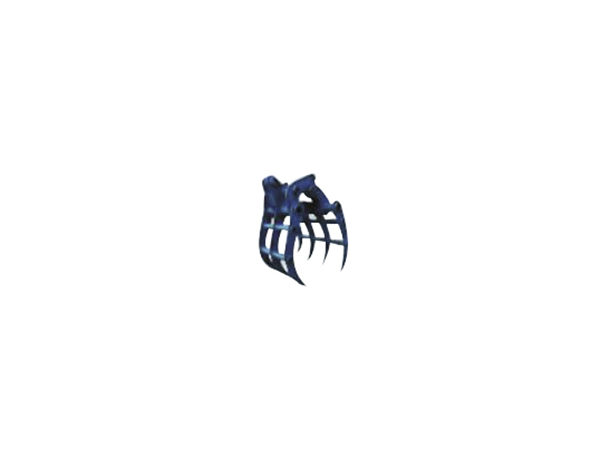

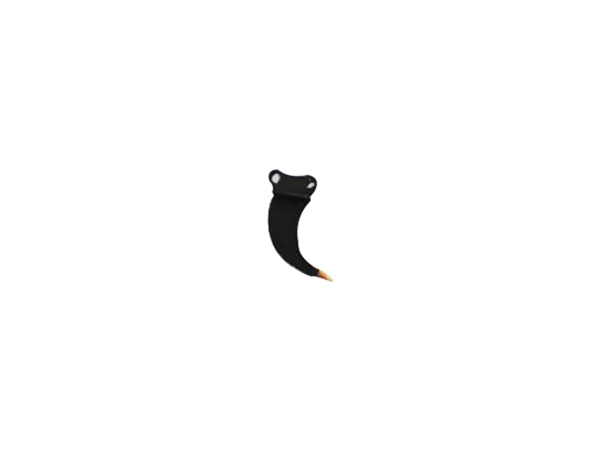

The YTO40B mini crawler excavator is a beautifully designed piece of machinery configured for superior performance with low fuel consumption and a wide scope of application. Utilize the excavator’s quick hitch to add attachment tools like augers, hydraulic hammers, loading buckets, grippers, and more. The simple design of the machine helps to minimize maintenance and operation costs. It reduces the amount of time of relatively small digging jobs and one operator can do the job of several manual workers in significantly less time, offering a high return on investment.

  • YTO40B Mini Crawler Excavator
  • YTO40B Mini Crawler Excavator
  • YTO40B Mini Crawler Excavator
  • YTO40B Mini Crawler Excavator
Physical size
Total length 4750mm
Total width 2000mm
Total height 2260mm
Standard bucket capacity 0.25m3
Shoe width 350mm
Track length 2175mm
Track gauge 1703mm
Platform ground clearance 557mm
Boom length 2350mm
Fuel tank capacity 60 Liters
Hydraulic oil tank capacity 75 Liters
Engine oil tank capacity 5 Liters
Performance parameter
Gradeability 30 degree
Traction 12.5KN
Rotary speed 10RPM
Max. walking speed 5.55km/h
Maximum digging force 55.6KN
Rail contact pressure on ground 34.8kpa
Brake system Hydraulic lock system
Swing method Hydraulic motor driven
Swing motor Axial piston type
Drive method Hydrostatic
Number of track roller 54 pcs.in each side
Number of rubber shoes 46 pcs.in each side
Working range
Overall weight 3680kg
Maximum digging radius 4730mm
Maximum digging depth 2950mm
Maximum digging height 4730mm
Maximum digging distance 4630mm
Maximum radius of gyration 1820mm
Maximum dumping height 3300mm
Maximum turning radius 650-718mm
Maximum lifting height of earth shovel 359mm
Maximum digging depth of dozer 268mm
Tail swing radius 1170mm
The maximum digging force of bucket 24KN
Bucket capacity 0.10m3
Ground specific pressure 0.477kg/cm2
Hydraulic system
Operating pressure 22mpa
Walking motor Two speed plunger
Rotary motor Variable plunger
Main pump 32cc Plunger
Flow 99/min
Engine
Engine model 4TNV88-B
Engine brand YANMAR
Type 4 Cylinder,4 Strokes Water Cooled Diesel Engine With Euro-Ⅲ-A
Rated Power 25.2KW at 2200 rpm
Displacement Volume 2.19 Liters
Torque 112N-m/2200rpm
