Hydraulic Double Drum Vibratory Roller LTC208

LTC208 hydraulic double drum vibratory roller is manufactured with international advanced technology and by the use of imported components. Adopting CUMMINS (USA) origin engine, this road roller can meet Euro II / Tire II emission standard, and has been certified by authoritative organizations (The United Kingdom Vehicle Approval Authority/ United States Environmental Protection Agency). This road roller is a double drum tandem vibratory roller primarily used for the compaction of bituminous concrete, sand gravel mixtures and RCC material. It is universal compaction equipment for highway, municipal road, park area and industrial ground etc. Our hydraulic double drum vibratory roller possesses high compaction capacity and high production rate.

• USA original CUMMINS engine;
• Full hydraulic, tandem type equal size twin-drum;
• Double frequency, double vibration system;
• Hydrostatic center articulated steering, patented crab mechanism;
• Steel sealed red color painted cabin with air conditioner, comfortable and spacious, the flexible steering seat facilitates the operation.
• The driver’s cabin can be turned on one side as a whole to facilitate maintenance.
• Fork-type frame, good hold-down property.
• Hydraulic pump and vibrating motors are made by American manufacturer SAUER or German manufacturer REXROTH.
• Naturally aspirated water cooled diesel engine equipped with selected 12 or 24v heavy duty battery, starter and alternator.
• Hydrostatic service brake and parking brake.
• Hydrostatic and individual drum vibration control drive system. Drive motor is fitted on both drum.

Hydraulic controlled power steering wheel, parking brake switch, engine start/run/stop switch, water spray on/off switch, water spray control valve, machine direction /speed control lever with neutral start switch.
Water sprinkler system:
Gravity feed system/ pressurized system (with adjustable nozzle opening) controlled by switch at operators position.

Main accessories for the LTC208 hydraulic double drum vibratory roller include: water temperature meter, hour meter, fuel indicator, battery charger indicator, oil pressure gauge, oil temperature gauge, speedometer, hydraulic oil meter, engine coolant gauge, air and hydraulic filter indicator lights, electric fan, steering light, operating light, steering light switch, fan switch, front light switch, rear light switch, start switch, cabin light, instrument light, reverse mirror, single lever control for travel and vibrator, weather protected starting and stopping vibrator, control and warning indicator lights, emergency stop button, vibration cutoff, rear drum, ROPS.

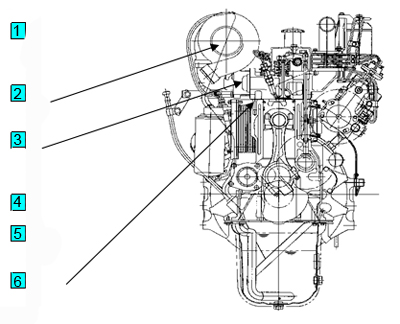

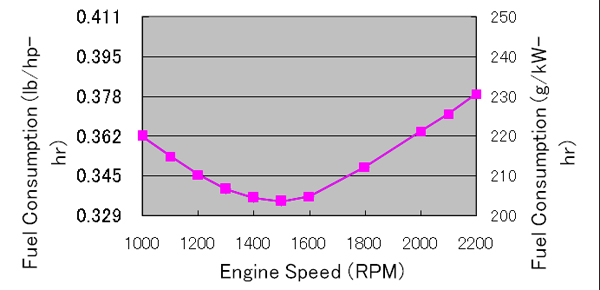

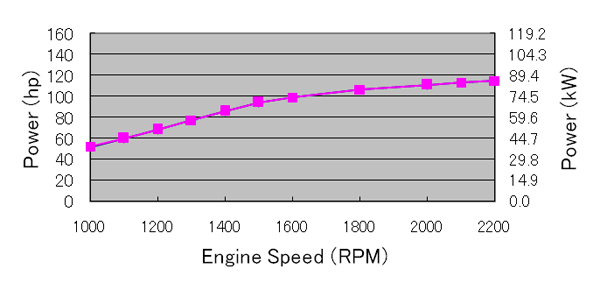

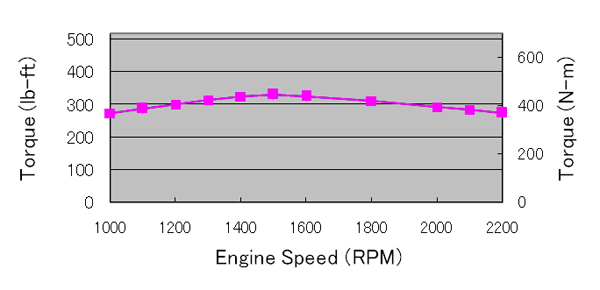

Emission/Performance Improvement Measures

• Air to air After cooler
  Intake air temperature:60deg / Lower Nox,better BSFC
• Higher turbo efficency
  HX35 7735AX <--- 8864AX
• High flow nozzle
  Flow coefficient : 0.82 / Lower smoke,better BSFC
• Nozzle protrusion

• Injection timing strategy
  13deg BTDC <--- 20deg BTDC

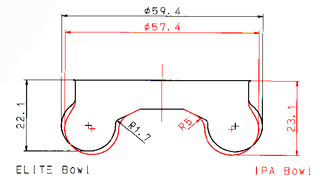

• Piston
  IPA1 bowl <-- ELITE bowl

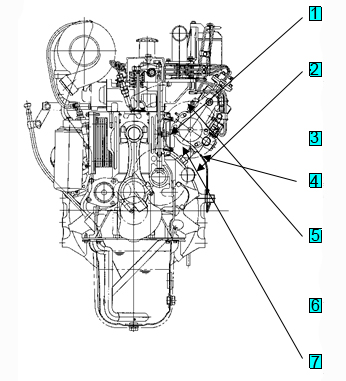

Noise Reduction Measures

• Cover, tappet
  Isolated ADC cover with noise panel of tappet cover Also good for resolving oil leakage problem
• Case, gear
  FC ← ADC Increasing case stiffness / Reducing back lush on running
• Gear train
  /Reducing gear backlash
• Injection pump bracket
  Changing the location of BKT/Reducing injection pump vibration
• Standing wave between inj. pump and C/B
  Space rubber/No space for standing wave
• Retarded injection timing
  /Reducing dp/dθ BTDC 13deg←20deg (differential firing pressure)
• Damper of injection pump
  Injection pump gear with damper/Reducing deferential speed of I/P gear
