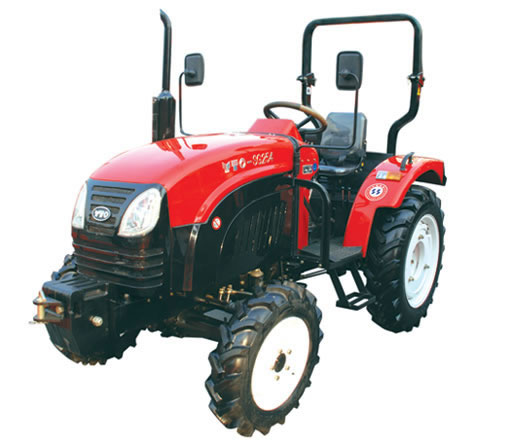

25-30HP Wheeled Tractor

25-30HP Wheeled Tractor

25-30HP Wheeled Tractor
This product has been discontinued and removed from our shelves.

YTO, a wheeled tractor manufacturer in China, has accumulated over 50 years of experience in the production of agriculture machinery and construction machinery. Due to our consistent focus on product improvement, our products are reliable, durable, cost-effective, and thus are very popular with customers around the world.

Features
  • Our wheeled tractor is not only functional but also aesthetic.
  • It has passed the E-mark certification.
  • The tractor adopts a three cylinder, water cooled, four-stroke diesel engine, which is environment friendly due to its low emission.
  • Hydraulic steering, coupled with the use of parking handle and OECD anti-turnover bar, helps ensure easy operation and high safety.
  • High reserve coefficient of the transmission system, dual speed PTO, optional 8+8 or 16+8 gears
Specifications
Model YTO-SG254 YTO-SG284 YTO-SG304
Diesel engine
Model KM385BT ZN390TE ZN390TE
Type Three cylinder, vertical, water cooled, four stroke
Displacement (L) 1.532 1.813 1.813
Rated power/speed(Kw)/(r/min) 18.4/2350 20.6/2400 22.1/2400
Max. torque (N.m)/speed (r/min) 86/1680 96.8/1750 102.7/1750
Bore x stroke (mm) 85x90 90x95 90x95
Transmission
Gear shift, forward/backward 8/4 8/4 8/4
Speed range (Km/h), forward/backward 2.07~29.65/2.45~7.84 2.12~30.28/2.50~8.01 2.12~30.28/2.50~8.01
PTO power (Kw) 14.72 16.48 17.65
PTO rotation speed(r/min) 540/720 or 540/1000 540/720 or 540/1000 540/720 or 540/1000
Clutch 8-inch, dry, double action 9-inch, dry, double action 9-inch, dry, double action
Implement
Three-point linkage category Rear three-point linkageⅠ
Tilling depth control mode Height adjustment, position adjustment
Lifting force(KN) 4.14 4.64 4.96
Options
Transmission with creeper gear 4x(2+1)x2
Transmission with shuttle device 4x2x2
Hydraulic output 2 group
Dimensions, mass, drive
Drive type 4x4 4x4 4x4
Overall dimensions (LxWxH)(mm) 3405x1440x2240 3490x1450x2240 3490x1450x2240
Wheelbase(mm) 1698 1698 1738
Min. ground clearance(mm) 315 315 325
Min. operating mass(with safety stand)(Kg) 1535 1550 1550
Tyre spec., front /rear 6.00-16/9.5-24 6.00-16/9.5-24 6.00-16/9.5-24
Wheel tread, front/rear 1200/1100,1200,1300,1400
Steering Full hydraulic
Brake Disc, mechanical

If you want more information about our wheeled tractor, please continue browsing our website, or contact us directly.
