This product has been discontinued and removed from our shelves.

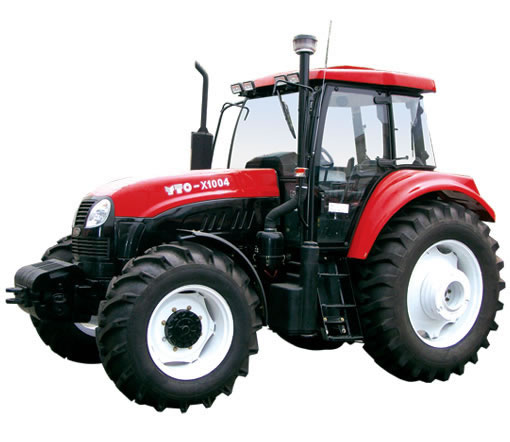

As a China wheeled tractor manufacturer and supplier, we at YTO have been ISO9000 and ISO14000 certified due to our consistent dedication to product quality and environmental protection. Through our decades of experience, now we can offer a great variety of tractors. 100-130HP wheeled tractor is one of our most popular products.
Here, we give you some features of this product so as to help you better understand it. Our wheeled tractor employs six cylinder, water cooled, four-stroke engine. PERKINS engine is also available, which is of reliable quality, high torque, and low fuel consumption.

Features
  • The transmission system, which is manufactured using advanced Italian technology, has the advantages of reasonable structure and high transmission efficiency.
  • The full hydraulic steering system is utilized for easy operation.
  • The rear axle brake adopts the wet disk brake, which is reliable and helps ensure the driver safety.
  • The new flat-floor cab is stylish, comfortable, and can be equipped with an air conditioning system.
  • Two independent PTO output speeds (540 and 1000 r/min) suit all operation requirements.
  • High lifting force, with multiple tillage depth control
  • Our wheeled tractor is equipped with a double action clutch.
Specifications
Model YTO-X1004 YTO-X1204 YTO-X1254 YTO-X1304
Tractor
Type 4×4
Overall dimensions (LxWxH)(mm) 4950×2290×2925 5000×2330×2960
Wheelbase(mm) 2648.5 2688.5
Min. ground clearance(mm) 450 470
Min. operating mass(Kg) 4750 4850 4850 4910
Tyre spec., front /rear 14.9-24/16.9-38 14.9-26/18.4-38
Wheel tread, front/rear 1672-2003/1600-2200 1672-2003/1662-2262 1822-2153/1662-2262
Gear shift, forward/backward 12/4
Speed range (Km/h), forward/backward 2.24-29.30 / 4.83-13.67 2.34-30.55 / 5.04-14.27
PTO power (Kw) 62.7 71.25 78.85 81.7
Lifting force(KN) 24 28
Diesel engine
Model LR6A3-23 LR6B5-23 LR6M5-23 LR6M5-23
Type Six cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L) 6.49 7.43 7.7 7.7
Rated power/speed(Kw)/(r/min) 73.5/2400 88.2/2400 92/2400 95.6/2400

If you require further information on our wheeled tractor or wish to discuss requirements, please feel free to contact us. OEM orders are also welcome.
